PUF Roof Panels
Mount’s sandwich roof panels are engineered as a high-performance building envelope solution, combining rigid polyurethane foam insulation with precision-profiled metal facings. Designed to control heat transfer, condensation risk, and structural loading, these panels deliver consistent thermal stability, reduced HVAC demand, and long-term durability across industrial, commercial, and temperature-controlled facilities.
Colour Shades
Mount’s sandwich roof panels are offered in a curated range of 10 factory-applied colour-coated finishes, engineered to support functional zoning, architectural integration, and site-specific environmental exposure. The pre-coated metal facings ensure uniform colour consistency, enhanced corrosion resistance, and long-term surface stability, maintaining performance and appearance under demanding industrial and coastal conditions.
Select Color:
Product Specifications
| Parameter | Specification |
|---|---|
| Full Form | Polyurethane Foam |
| Core Material | Rigid Polyurethane Foam |
| Thermal Conductivity | 0.022–0.024 W/m·K |
| Insulation Performance | Very Good |
| Fire Resistance | B2 / B3 (Flammable) |
| Smoke Generation | Higher |
| Density | 38–42 kg/m³ |
| Panel Thickness | 20–200 mm |
| Panel Width | 1060 mm |
| Panel Length | Up to 12–15 m |
| Top Sheet | PPGI / GI / Aluminium / SS |
| Bottom Sheet | PPGI / GI / Aluminium / Foil |
| Sheet Thickness | 0.35–0.60 mm |
| Roof Profile | Trapezoidal / Ribbed |
| Weight (50 mm) | 10–12 kg/m² |
| Service Temperature | -40°C to +80°C |
| Cost | Lower |
| Applications | Factories, Warehouses, Sheds |

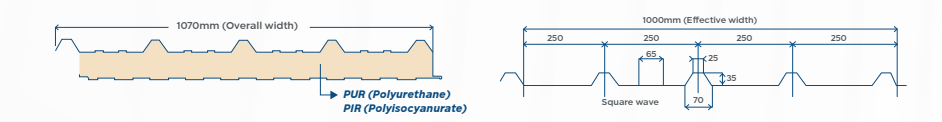

Profile drawing
Key Performance Attributes
Outlining Essential performance parameters influencing insulation, strength, and installation efficiency.
Moisture Penetration
Interlocking panel joints support controlled drainage and reduce the risk of water penetration.
Roof Slope Compatibility
Designed for effective drainage at low roof pitches.
Energy Efficiency
The rigid polyurethane insulation core limits heat transfer into the building envelope enhances energy efficiency , helping lower energy costs.
Low Thermal Transmittance
The rigid polyurethane core provides low thermal conductivity, resulting in reduced heat flow (U-value)
Available Joints
Mount’s panel joint configurations ensure precise alignment, secure interlocking, and effective load transfer, enhancing structural continuity, air and moisture tightness, and installation efficiency while maintaining long-term durability .
Roof Joint
Single Tongue & Groove Joint
Double Tongue & Groove Joint
Hidden Tongue & Groove
Camlock Joint
M Section
Advantages of the Roof Panels
Optimized Building Envelope Performance
PUF roof panels function as a combined insulation and external roofing system, reducing the need for multi-layer construction and simplifying roof assembly.
Reduced Structural Load
Lightweight insulated panels reduce dead load on primary steel members compared to conventional RCC or built-up roofing systems, allowing more efficient structural design.
Controlled Installation Process
Factory-manufactured panels enable predictable on-site installation timelines with reduced wet works and minimized construction dependency on weather conditions.
Improved Long-Term Thermal Stability
The rigid polyurethane core supports consistent insulation performance across industrial roof spans when properly installed and sealed.
Lower Maintenance Exposure
Pre-finished metal facings reduce surface degradation risks associated with conventional roofing materials under typical industrial environments.
Available Accessories
Mount Roofing & Structures provides engineered panel accessories designed to support installation accuracy, system compatibility, and enclosure performance across insulated panel applications.
These accessories are developed to integrate seamlessly with Mount panel systems, ensuring coordinated detailing, structural alignment, and long-term operational reliability across industrial, commercial, cleanroom, and cold storage projects.
Bottom C Flashing
L Flashing (Inner and Outer)
Walkable Ceiling Panels
Non-Walkable Ceiling Panels
Inner and Outer Covings
View Panels
Applications

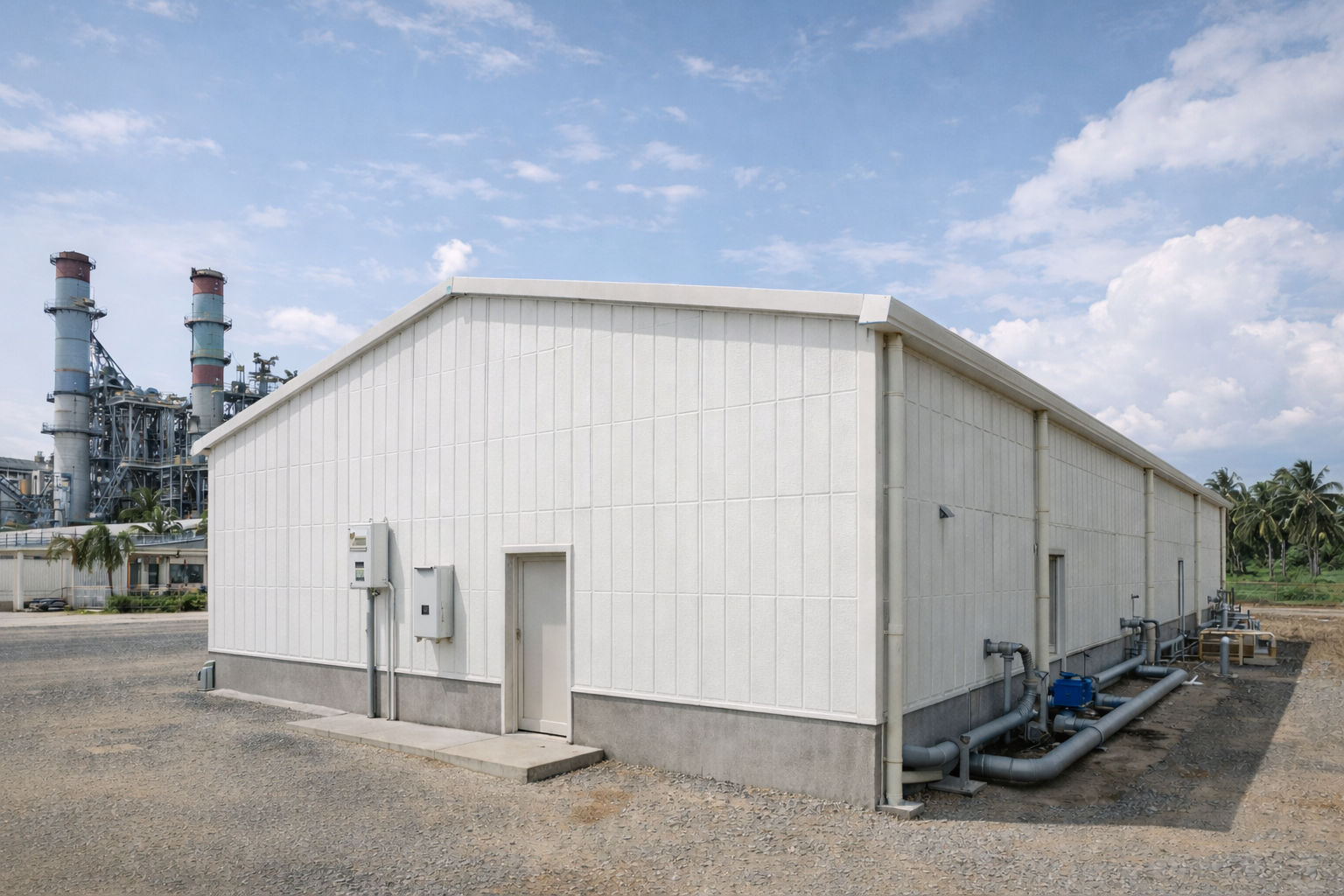

Power Plants
Reduces unwanted thermal transfer in auxiliary roofed structures.

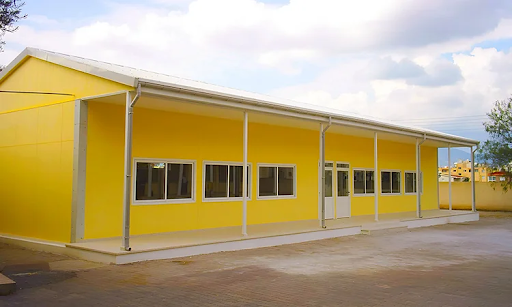

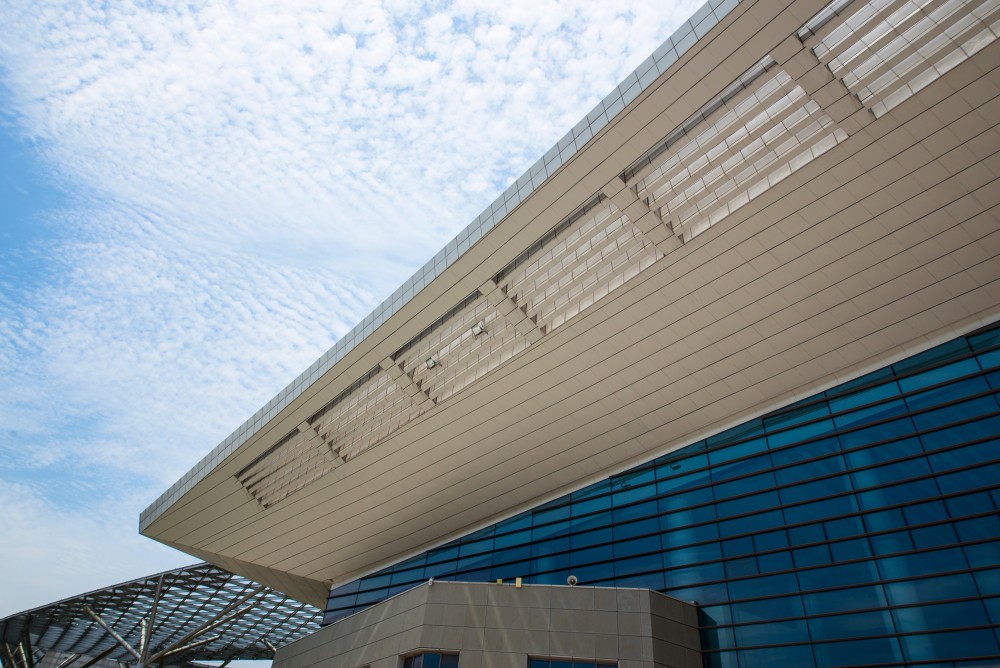

Institutional & Educational Buildings
Lightweight insulated roof systems improve thermal comfort in assembly halls.

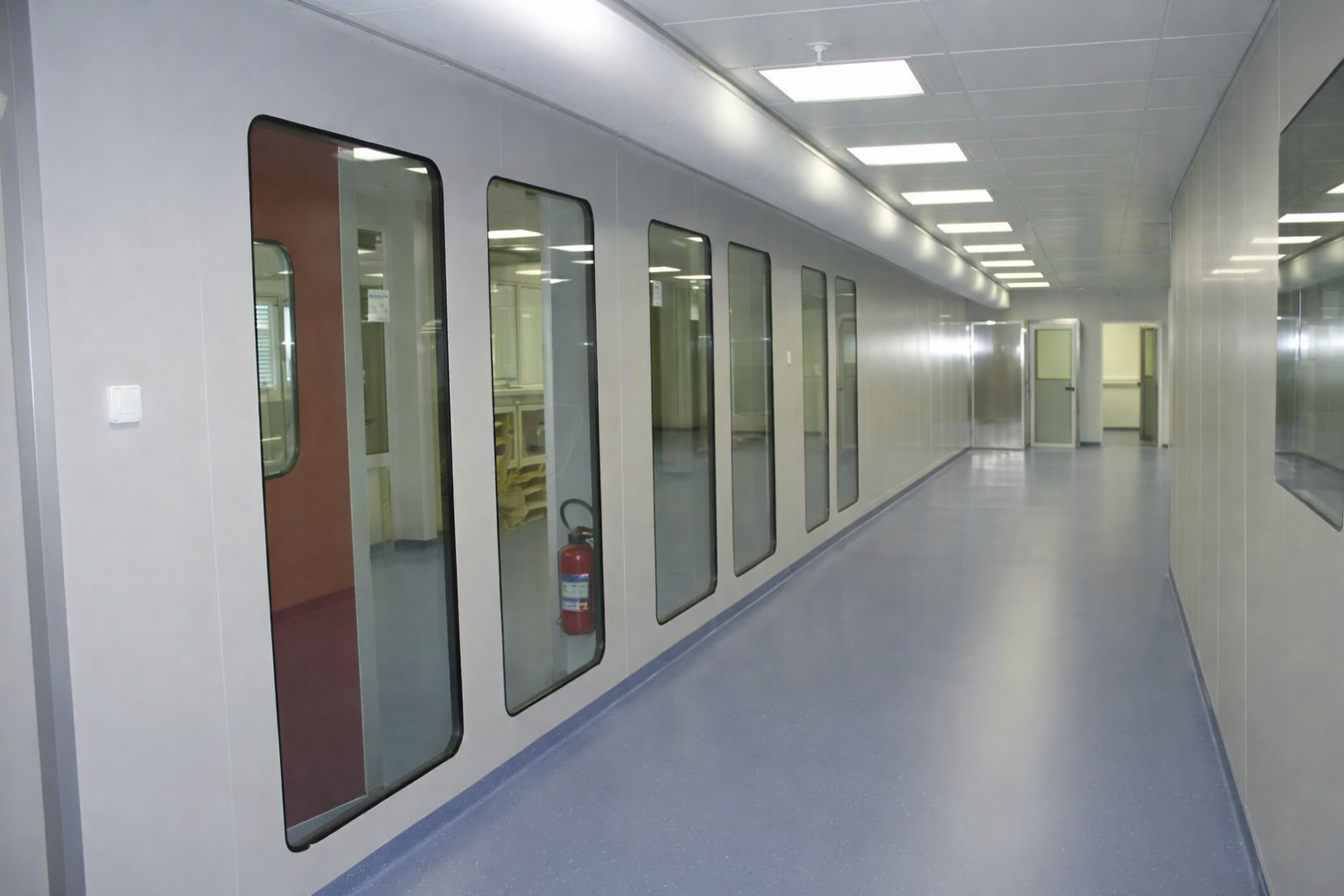

Pharma & Food Facilities
Limits condensation and supports temperature control.

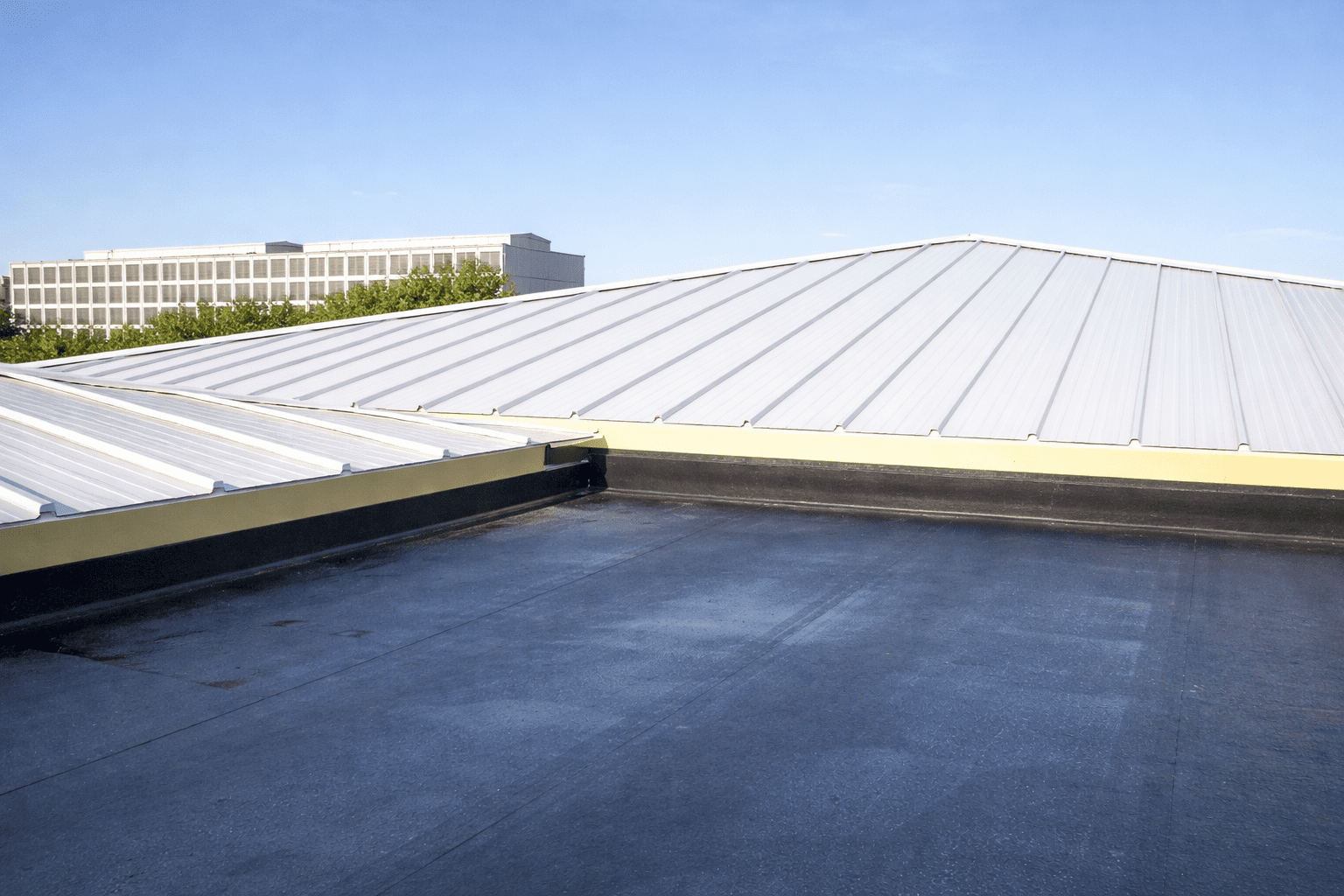

Low-Slope Commercial Roofs
Ensures drainage and long-term weather performance.
Oil & Gas Facilities
Suitable for insulated roofing in non-fire-rated operational buildings.

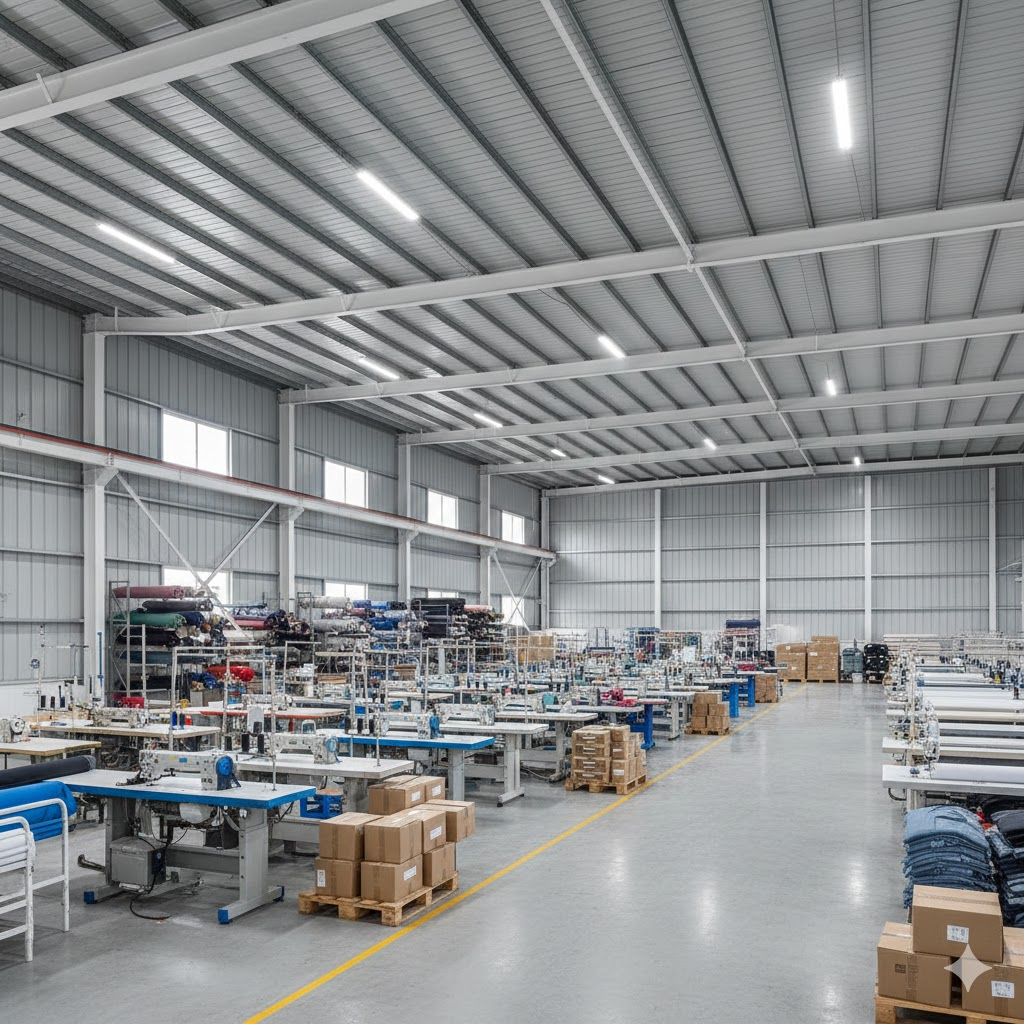

Textile & Garment Manufacturing
Helps maintain stable overhead thermal conditions where production is temperature-sensitive.

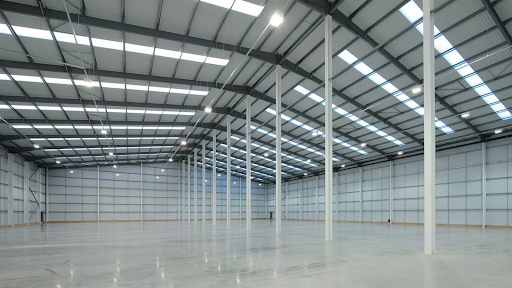

Pre-Engineered Building (PEB) Structures
Designed to integrate with steel rafters as insulated roof cladding.

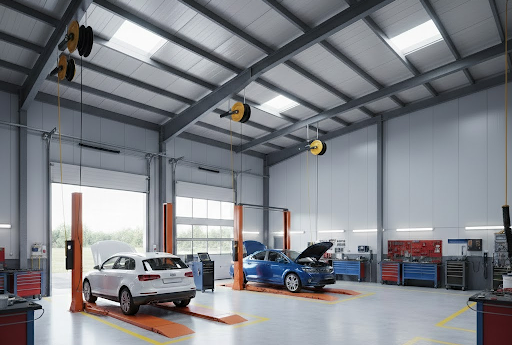

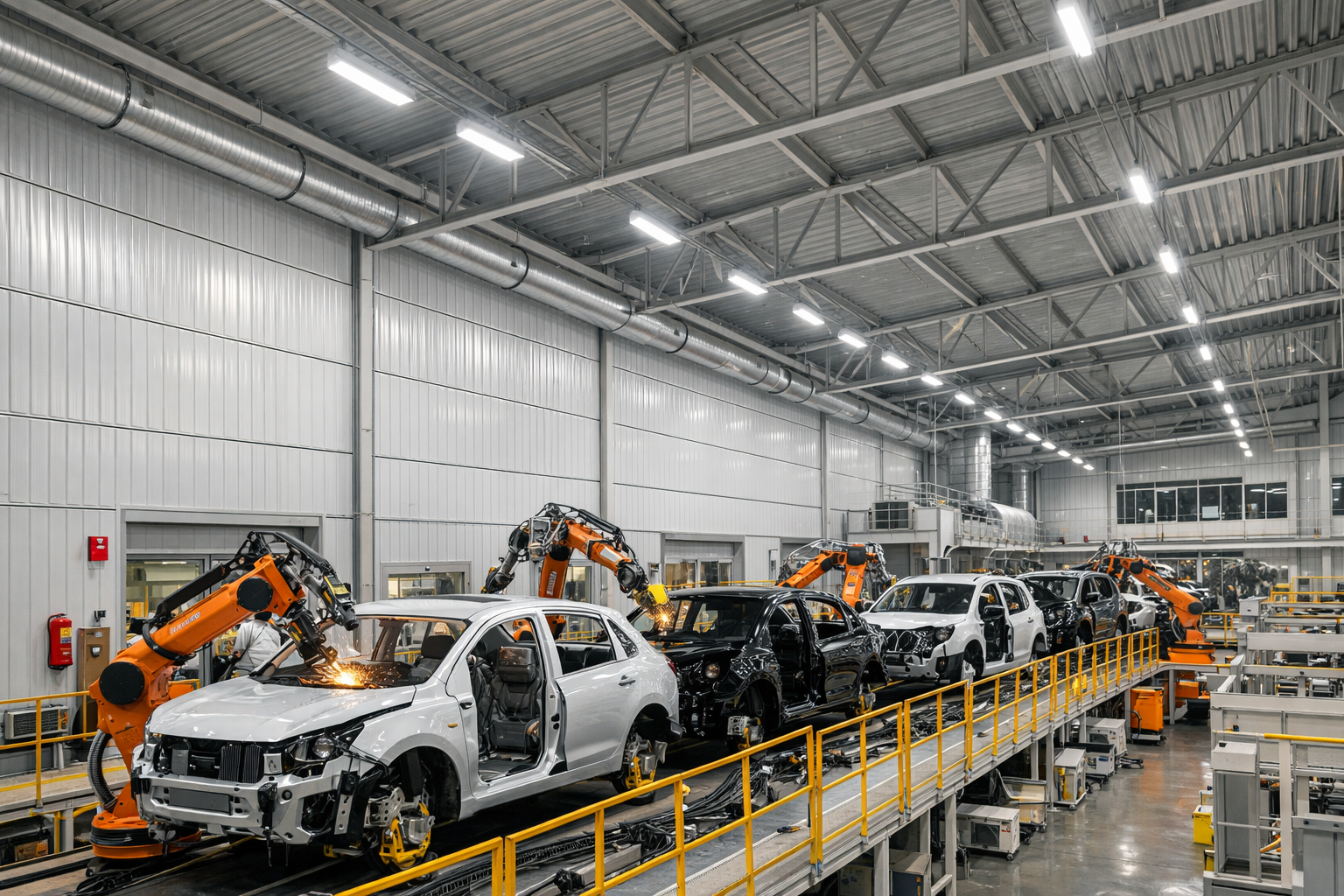

Automobile & Engineering Workshops
Insulated roofing reduces radiant heat build-up in high-bay industrial spaces.
Industrial Manufacturing Units
Provides thermally insulated roofing across large spans while reducing structural dead load.
Warehouses & Logistics Centres
Minimizes roof heat gain, improving indoor temperature consistency in bulk storage facilities.

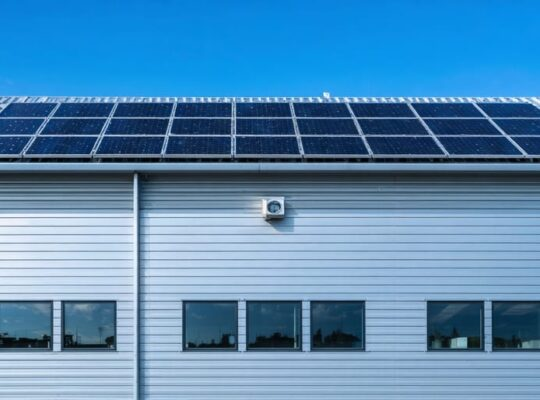

Solar-Integrated Industrial Roofs
Profiled design supports solar mounting without affecting drainage performance.

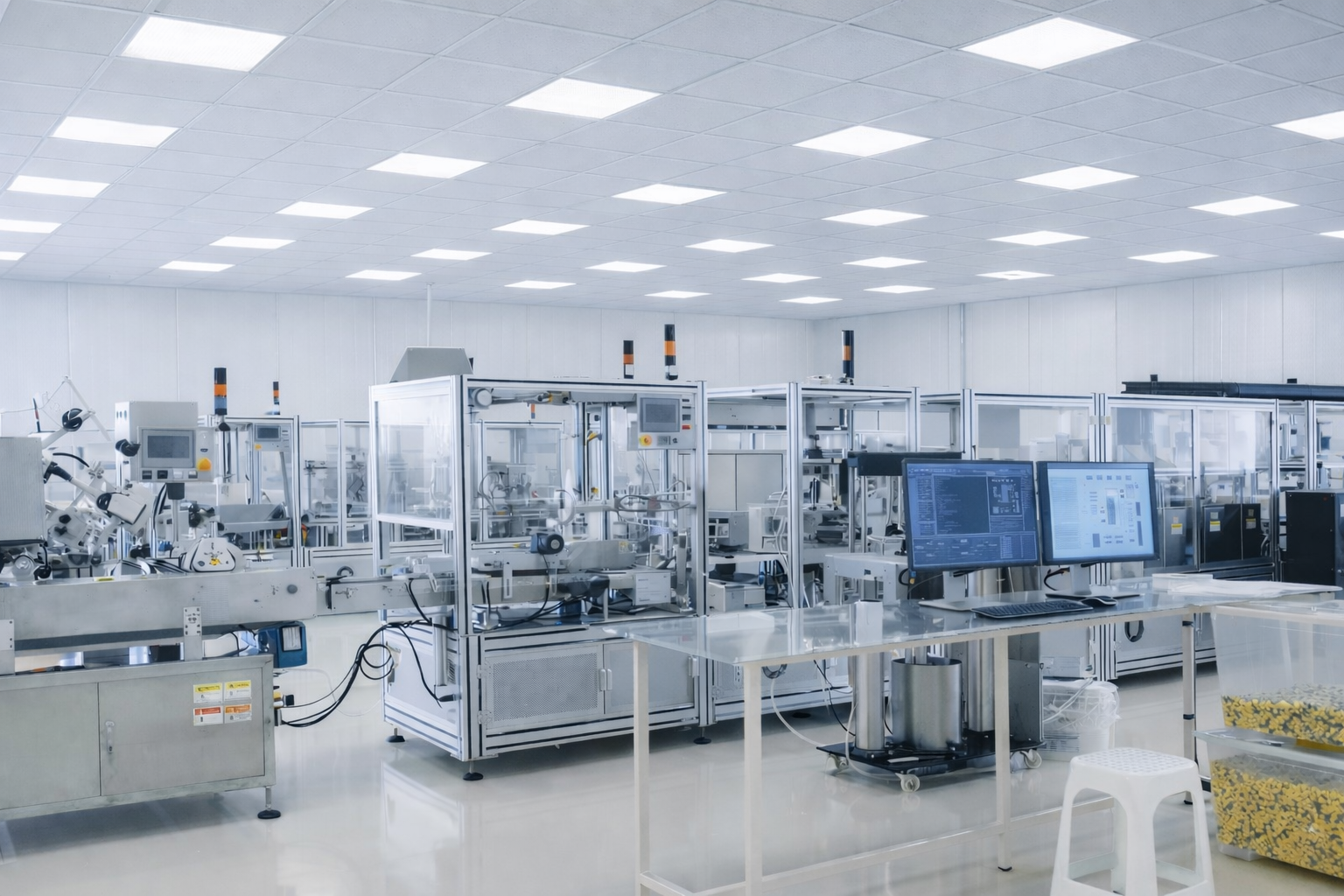

Pharmaceutical Production Areas
Supports insulated roofing in controlled manufacturing environments.
Why Choose Mount ?
Mount Roofing & Structures manufactures insulated roof panel systems within a structured production environment supported by in-house engineering and automated processing. This enables consistent output quality and coordination between structural framing and roofing systems.
- 30+ Years of Combined Industry Experience
Technical expertise across insulated panels and steel building systems. - Automated PUF Panel Production Lines
Ensures uniform core bonding, dimensional accuracy, and repeatable quality. - 8.5 Million m² Annual Production Capacity
Supports large-scale industrial and infrastructure roofing projects. - 460+ Skilled Workforce
Structured manufacturing, quality monitoring, and execution oversight. - Exports to 89 Countries
Experience supporting cold storage, industrial, and infrastructure developments globally.
Frequently asked Question
Sandwich roof panels are factory-engineered roofing systems consisting of insulated cores bonded between profiled metal facings, designed to deliver structural performance, thermal insulation, and weather protection as a single integrated roof element.
Mount’s sandwich roof panels integrate insulation, structural performance, and weather protection into a single factory-manufactured system, enabling faster installation and consistent performance. Unlike traditional roofing, which relies on multiple site-installed layers, they reduce dependency on workmanship, minimize leakage risks at joints, and deliver more uniform thermal insulation.
By limiting roof-level heat ingress and reducing thermal bridging, sandwich roof panels lower peak internal temperatures and HVAC demand, contributing to measurable reductions in energy consumption.
Yes. Their high stiffness-to-weight ratio enables longer clear spans while maintaining performance under wind uplift and service loads, reducing the need for secondary steel support.
Water tightness is ensured through precision-formed overlaps, engineered fixing zones, and controlled joint geometry designed to resist wind-driven rain and moisture penetration.
Sandwich roof panels are widely used in cold storage, pharmaceutical, and food processing facilities where roof-level thermal stability and condensation control are critical.
The insulated core significantly reduces radiant heat transfer from roof surfaces exposed to direct solar gain, maintaining stable internal conditions in hot and mixed climates.
Mount’s sandwich roof panels are available in insulation thicknesses ranging from 20mm – 200mm, allowing thermal performance to be engineered based on climatic conditions, energy targets, and specific building applications defined during project design.
Factory-fabricated panels reduce on-site assembly steps, enabling faster installation, improved accuracy, and earlier building enclosure.
When correctly specified and installed, Mount’s sandwich roof panels deliver long-term structural and thermal performance with minimal maintenance over their design life.
