Camlock Panels
Engineered for modular cold storage construction where speed, accuracy, and thermal integrity are critical. The integrated camlock mechanism ensures strong mechanical locking, precise panel alignment, and high-compression joints that minimize air leakage and thermal loss.Designed for both permanent and expandable cold rooms.
Product Specifications
| CHARACHTERISTICS | SPECIFICATIONS |
|---|---|
| Panel thickness available | 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel width available | 1080/1200mm |
| Top sheet thickness | 0.6/0.8 |
| Sheet Types | PCGI-GPSP/PPGI/SS |
| Surface coating | Pre Painted/Powder Coated/Fire Rated Paint |
| Infill | PUF/Rockwool/EPS/PIR/ |
| Length | Customized |
| Width | 1.16 |
| Color | As per Requirement |
Key Performance Attributes
Outlining Essential performance parameters influencing insulation, strength, and installation efficiency.
High Flexibility
High-compression joints for superior air and vapor sealing
Simple Maintenance
Modular construction allows dismantling and reinstallation
Rapid Installation
Reduced installation time and on-site labor
Superior fire resistance
Limits flame spread and supports safer enclosure performance in fire-sensitive cold storage and controlled-environment applications.
Related Products
Available Panel Joints
Mount’s panel joint configurations ensure precise alignment, secure interlocking, and effective load transfer, enhancing structural continuity, air and moisture tightness, and installation efficiency while maintaining long-term durability .
Roof Joint
Single Tongue & Groove Joint
Double Tongue & Groove Joint
Hidden Tongue & Groove

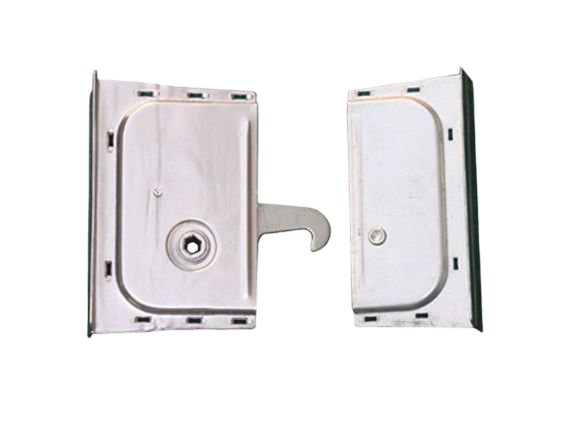

Camlock Joint
M Section
Applications
Wide ranging applications for Camlock Panels
Ice Cream & Frozen Dessert Production Areas
Applied in low-temperature production and storage zones.
Seafood Processing & Cold Storage Facilities
Used in high-humidity, low-temperature environments requiring airtight insulation.
Pharmaceutical Cold Storage
Ensures safe storage of temperature-sensitive medications and vaccines.
Dairy and Milk Products Storage
Maintains optimal conditions for storing milk and dairy products.
Cold Chain Logistics
Manages temperature-sensitive goods during transportation and storage.
Agriculture and Horticulture Storage
Supports the preservation of seeds, plants, and agricultural products.
Vaccine Transportation and Storage
Ensures vaccines are stored at precise temperatures during transport and storage.
Floral Storage
Keeps flowers fresh by maintaining controlled temperature and humidity levels.
Frequently asked Question
It is a modular insulated panel system that uses cam-lock mechanisms to join panels tightly, commonly used for cold rooms and temperature-controlled enclosures.
Camlocks mechanically pull adjacent panels together, creating a tight joint that improves alignment and enclosure integrity.
Because it allows fast installation, good joint tightness, and easy dismantling or relocation when required.
Yes, they are widely used in both chiller and freezer rooms, subject to appropriate insulation thickness selection.
Yes, one of the key advantages of camlock systems is that panels can be dismantled and reinstalled if needed.
Camlock joints provide tight panel connections that help reduce air leakage when properly installed and sealed.
Yes, they are designed for wall, ceiling, and partition applications in cold storage facilities.
Yes, they are commonly used in food processing, frozen storage, and pharmaceutical cold rooms.
Thickness is chosen based on operating temperature, room size, and insulation performance requirements.
Operating temperature range, insulation material, joint integrity, humidity conditions, and project-specific cold storage standards.
