Rockwool Wall Panel
The Rockwool Wall Panel is engineered for fire-rated wall and partition systems where containment, insulation, and acoustic performance are essential. The mineral wool core provides excellent resistance to fire spread while supporting stable internal conditions.
Colour Shades
Fire Rated Rockwool Wall Panel are supplied with a standard colour-coated finish selected to meet functional zoning, architectural coordination, and environmental exposure requirements. The pre-coated metal facings are factory-finished to ensure uniform colour consistency, corrosion resistance, and long-term surface stability under industrial and coastal operating conditions.
Select Color:
Product Specifications
| PARAMETER | SPECIFICATIONS |
|---|---|
| Core Material | Rockwool |
| Nature of Core | Inorganic, Fibrous, Non-combustible |
| Core Density | 96–120 kg/m³ |
| Thermal Conductivity (k-value) | 0.040–0.045 W/m·K |
| Panel Thickness | 50 / 75 / 100 / 120 / 150 / 200 mm |
| Effective Width | 1000 mm |
| Panel Length | Up to 12 m (customizable) |
| Top Sheet Material | PPGI / PPGL / GI / Aluminium / SS |
| Bottom Sheet Material | PPGI / GI / Aluminium / SS |
| Sheet Thickness | 0.35–0.80 mm |
| Roof Profile | Plain / Ribbed |
| Sound Insulation (Rw) | 29–32 dB |
| Weight (Approx.) | 18–25 kg/m² (100 mm panel) |
Profile drawing
Key Performance Attributes
Outlining Essential performance parameters influencing insulation, strength, and installation efficiency.
Fire Containment Performance
Helps restrict fire spread across wall assemblies
Sound Insulation
Improves acoustic comfort in industrial and commercial spaces.
Dimensional Stability
Resists shrinkage or deformation under fire exposure
Clean Wall Finish
Suitable for industrial and technical interiors.
Available Panel Joints
Mount’s panel joint configurations ensure precise alignment, secure interlocking, and effective load transfer, enhancing structural continuity, air and moisture tightness, and installation efficiency while maintaining long-term durability .
Roof Joint
Single Tongue & Groove Joint
Double Tongue & Groove Joint
Hidden Tongue & Groove
Camlock Joint
M Section
Advantages of the Fire Rated Rockwool Wall Panel
Non-Combustible Vertical Wall System
Rockwool wall panels incorporate a mineral fiber core that does not contribute to fire propagation, making them suitable for vertical enclosure systems in fire-aware buildings.
Enhanced Fire Compartmentation Support
Mineral wool cores are commonly used in wall assemblies forming part of fire separation strategies in industrial and commercial structures.
Thermal & Acoustic Dual Performance
In addition to insulation, the fibrous structure of rockwool contributes to sound attenuation in partition and external wall applications.
Dimensional Stability Under Heat Exposure
Rockwool maintains structural integrity at elevated temperatures without melting, supporting wall assembly continuity during fire scenarios.
Suitable for High-Risk Industrial Environments
Frequently specified in facilities handling flammable materials or requiring non-combustible building envelope systems.
Accessories
Mount Roofing & Structures provides engineered panel accessories designed to support installation accuracy, system compatibility, and enclosure performance across insulated panel applications.
These accessories are developed to integrate seamlessly with Mount panel systems, ensuring coordinated detailing, structural alignment, and long-term operational reliability across industrial, commercial, cleanroom, and cold storage projects.
Bottom C Flashing
L Flashing (Inner and Outer)
Walkable Ceiling Panels
Non-Walkable Ceiling Panels
Inner and Outer Covings
View Panels
Applications
Industrial Factories
Used in buildings requiring fire-resistant insulated enclosures.

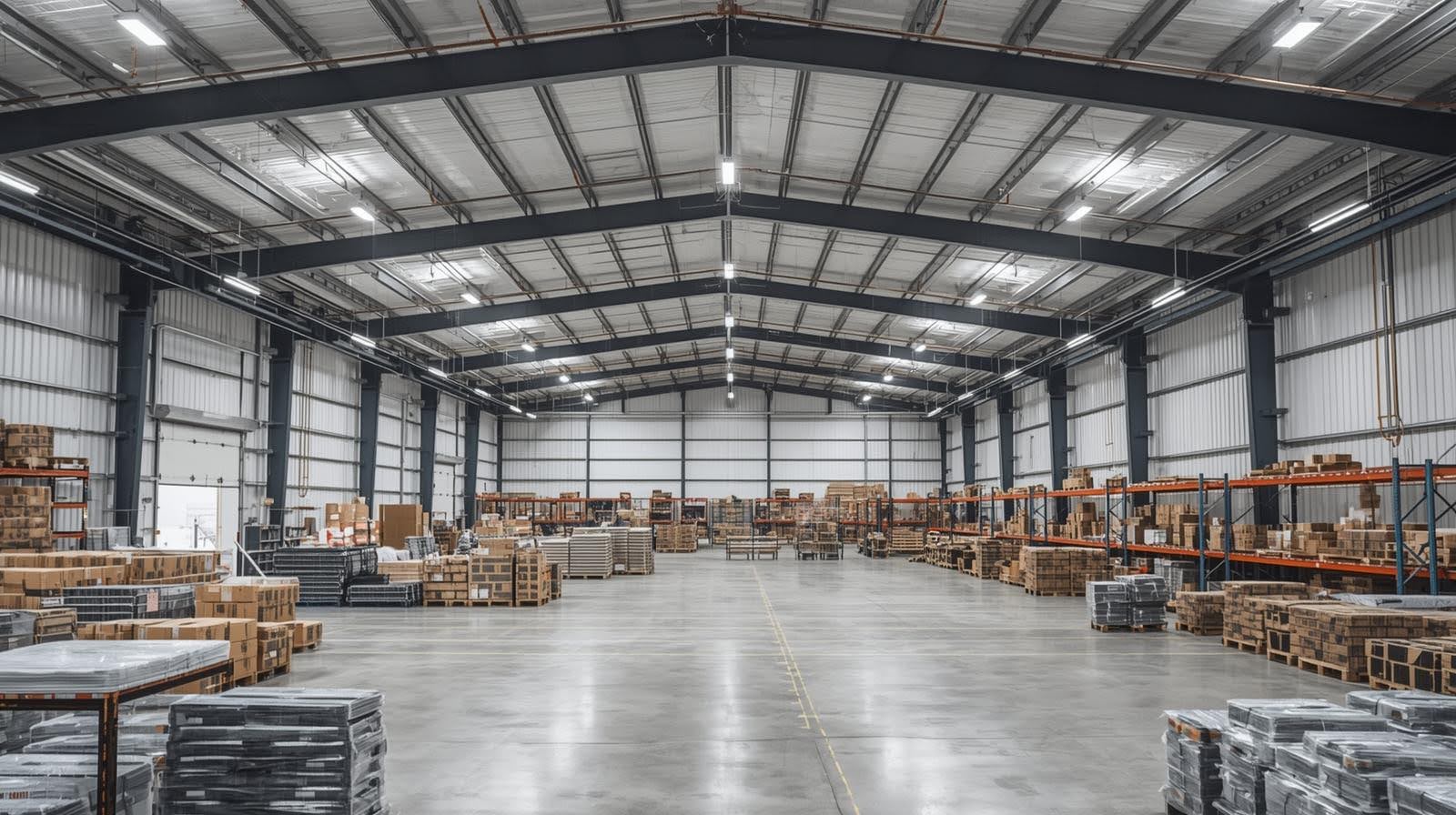

Warehouses
Suitable for storage facilities where enhanced fire safety is required.

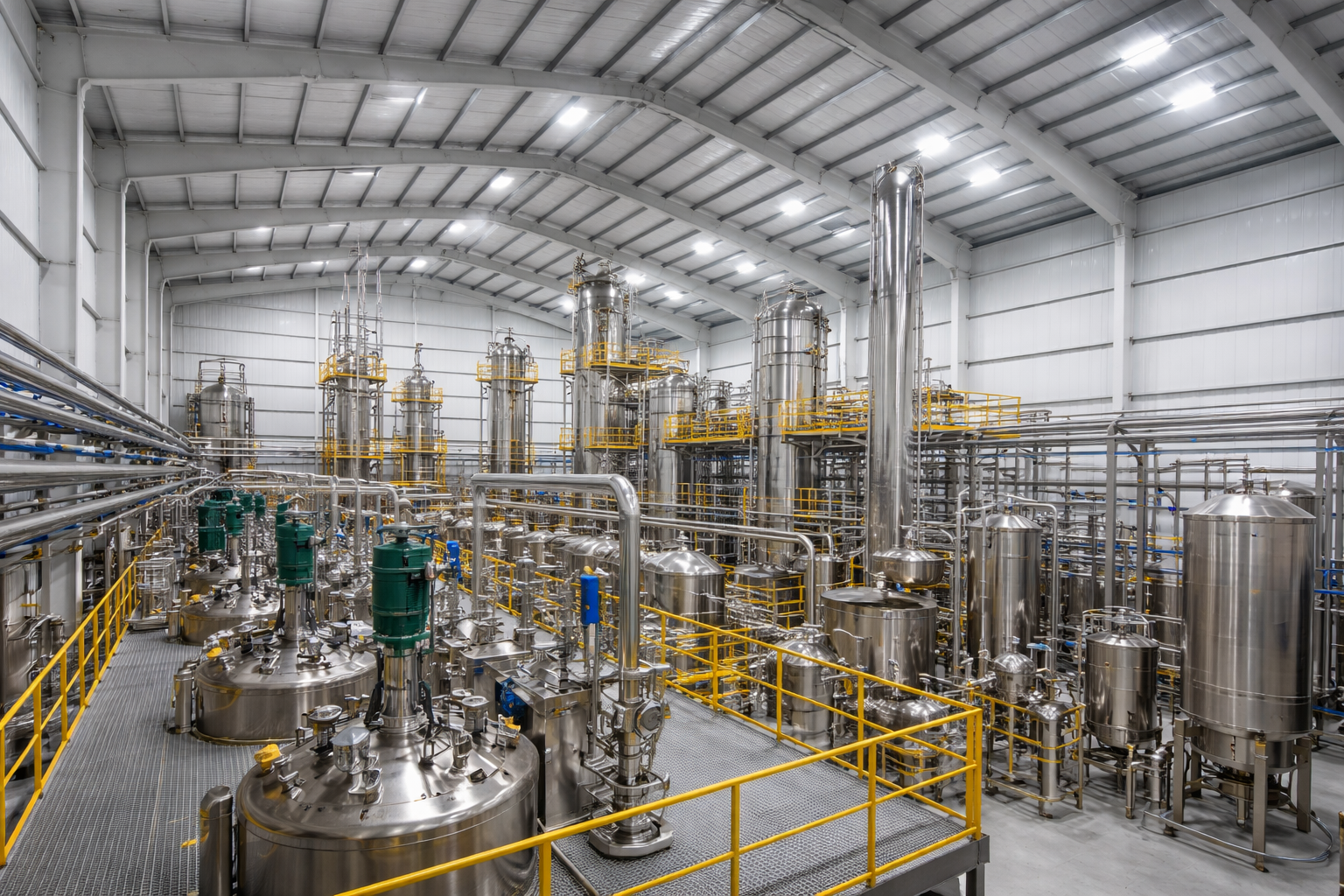

Chemical Plants
Applied in industrial environments exposed to heat and process operations.

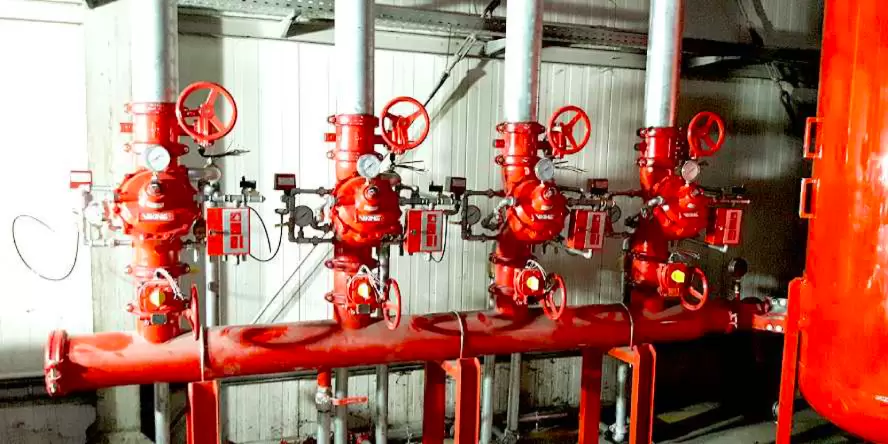

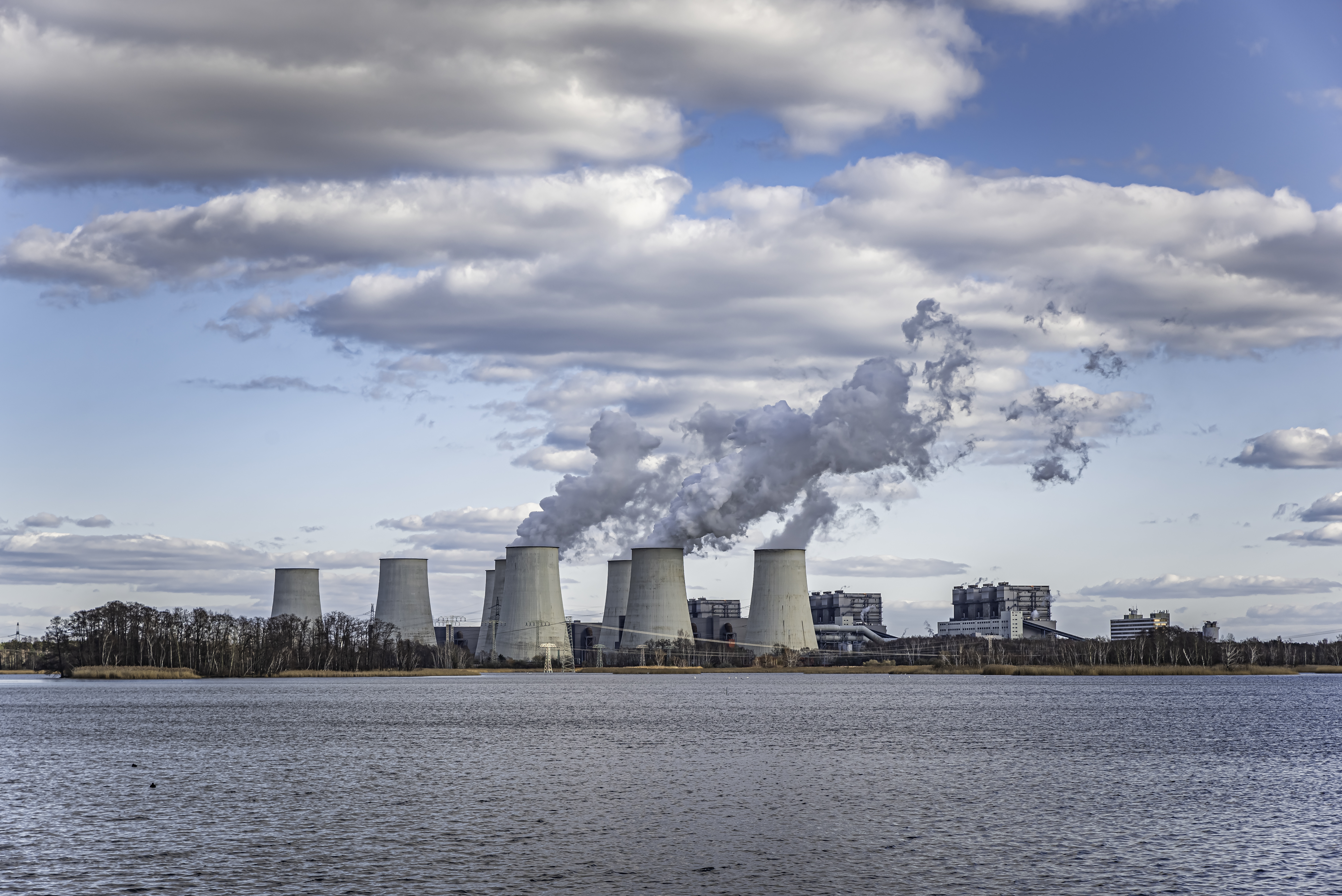

Power Plants
Used in utility buildings requiring fire-rated roof and wall systems.
Oil & Gas Facilities
Suitable for non-combustible building enclosures in industrial sites.

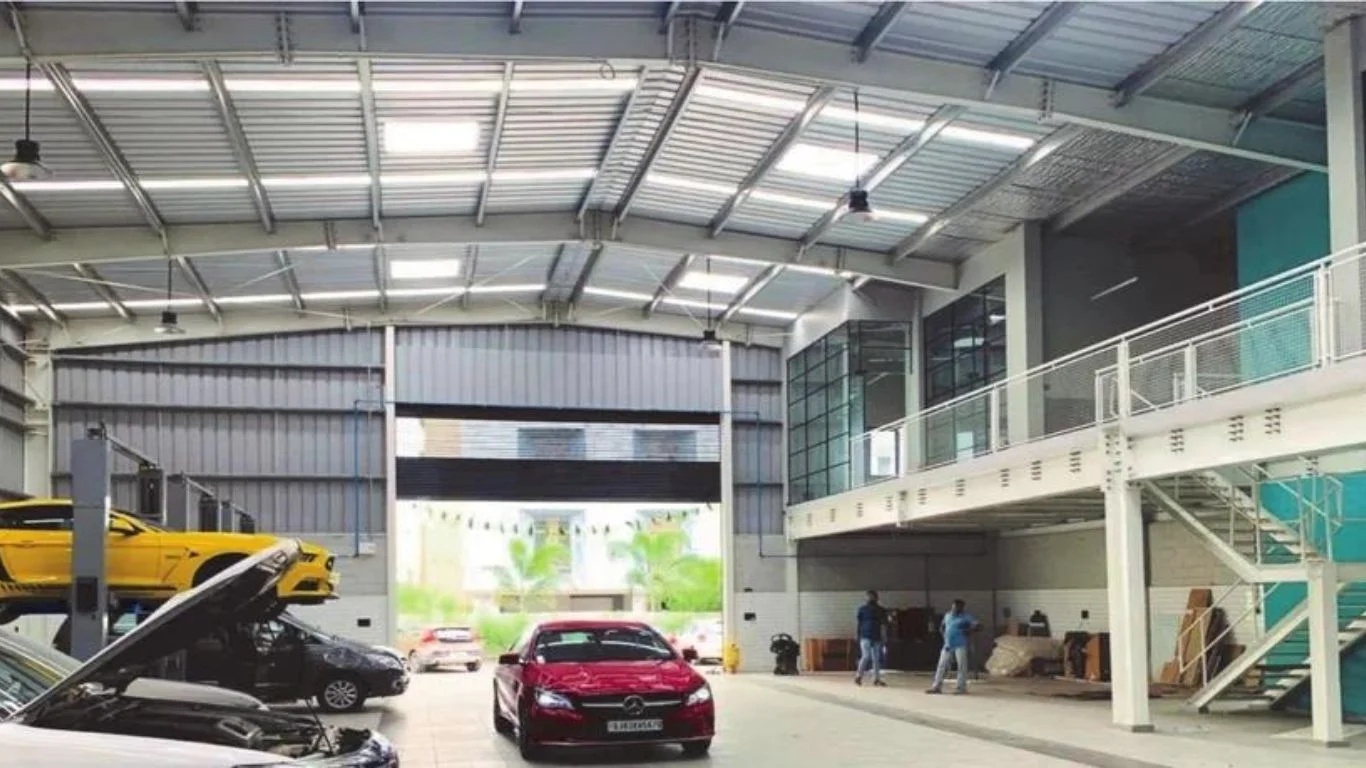

Automotive Manufacturing Units
Used in production buildings requiring improved fire performance.

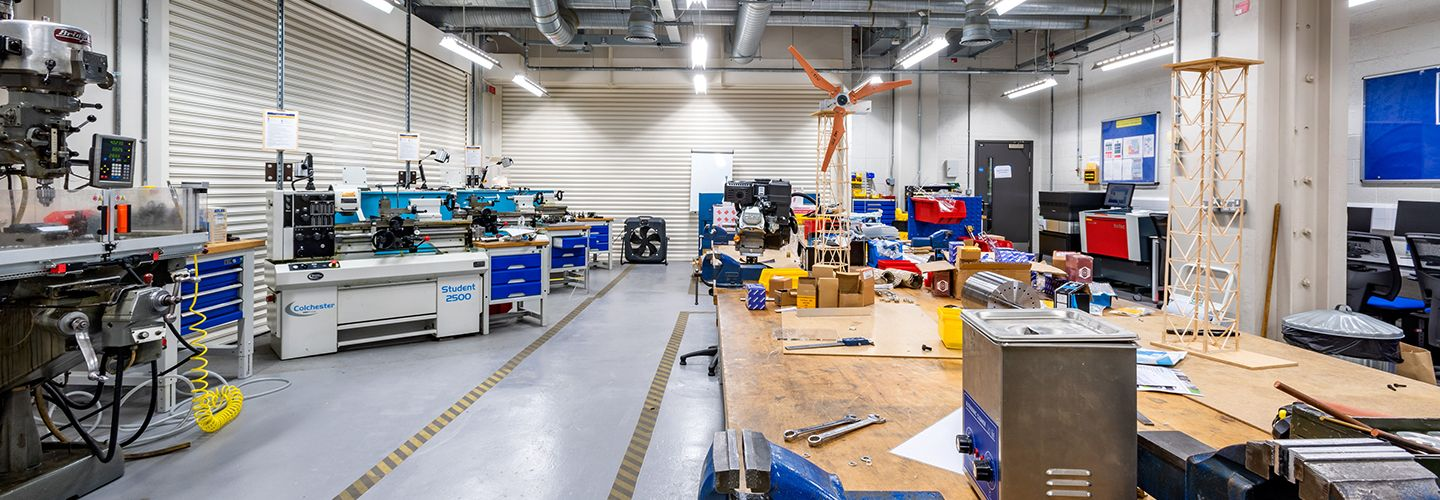

Engineering Workshops
Provides fire-resistant insulated enclosures in fabrication environments.

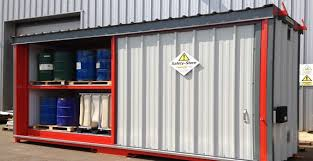

Storage Buildings for Flammable Materials
Supports fire-conscious construction in high-risk storage areas.

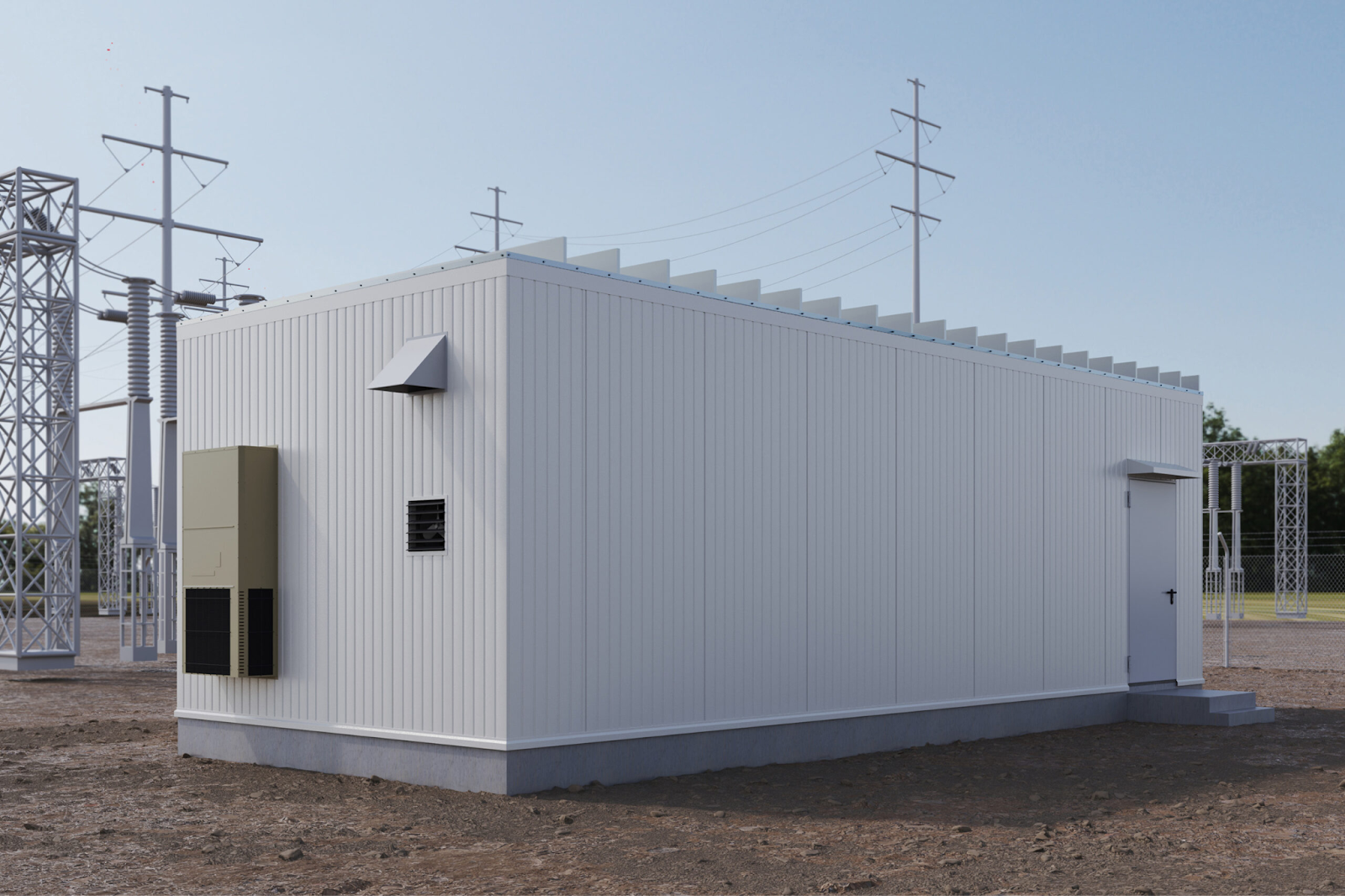

Electrical Substations
Used in insulated enclosures for power infrastructure.
Boiler & Generator Rooms
Suitable for areas exposed to elevated temperatures.

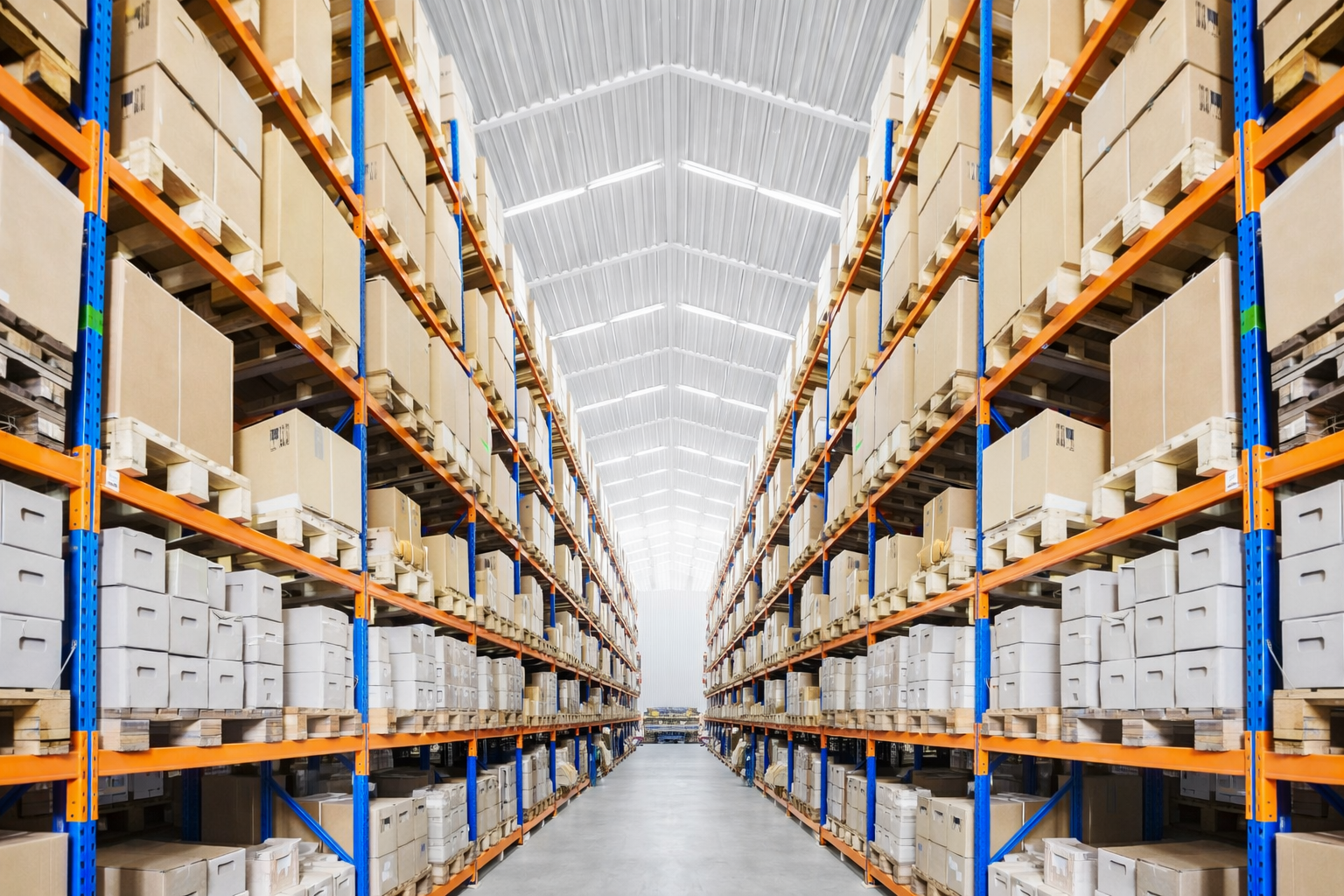

Logistics & Distribution Centres
Used in industrial buildings where fire safety is a design consideration.

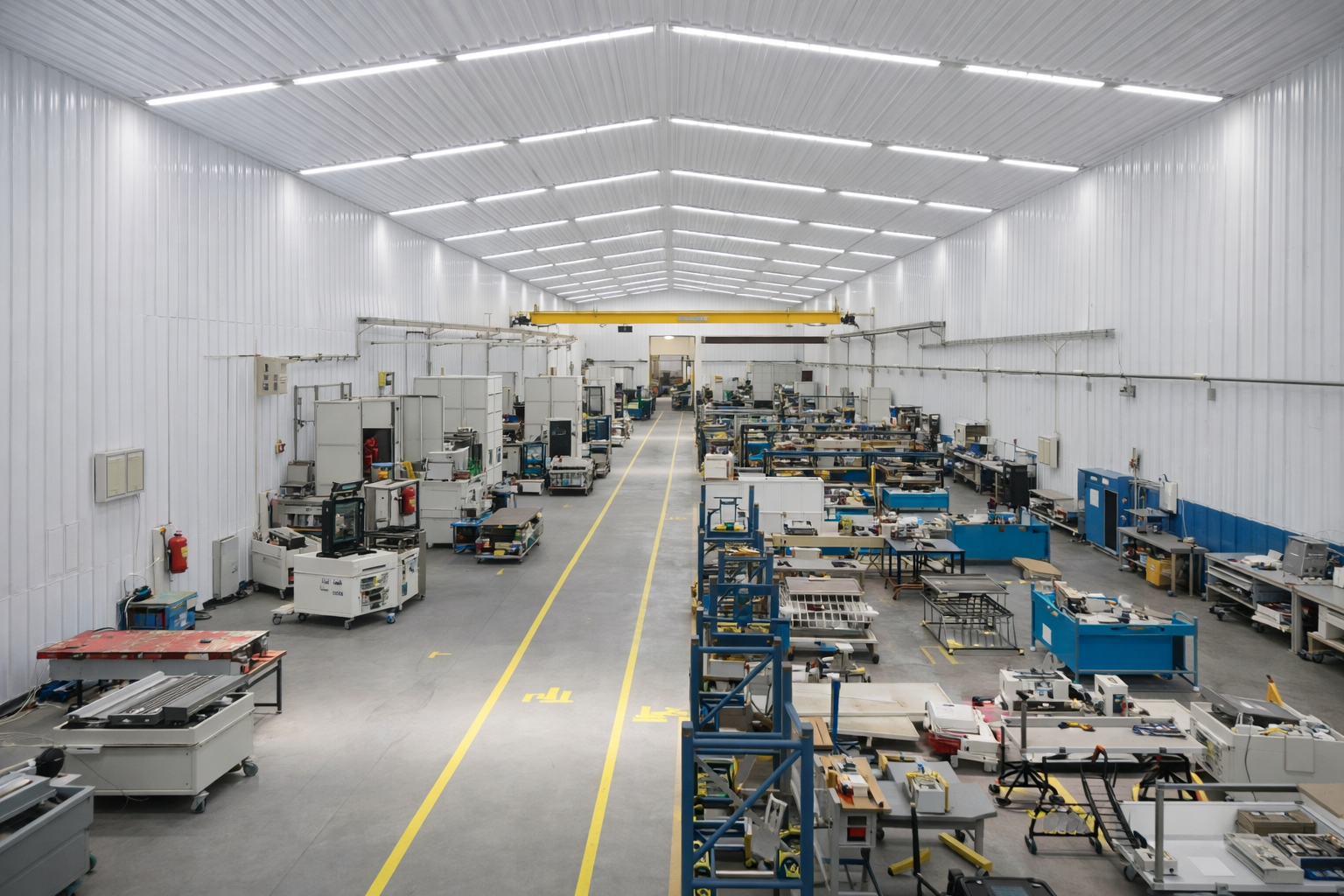

Industrial Parks & Manufacturing Clusters
Applied across multi-unit industrial developments requiring fire-rated systems.
Why Choose Mount?
Mount Roofing & Structures manufactures Rockwool wall panels within a structured production environment supported by in-house engineering coordination. Fabrication precision is critical to ensure correct core density, bonding strength, and panel alignment in vertical applications.
Key capabilities include:
- 30+ Years of Combined Industry Experience
Technical expertise across insulated panels and steel building systems.
- Automated PUF Panel Production Lines
Ensures uniform core bonding, dimensional accuracy, and repeatable quality.
- 8.5 Million m² Annual Production Capacity
Supports large-scale industrial and infrastructure roofing projects.
- 460+ Skilled Workforce
Structured manufacturing, quality monitoring, and execution oversight.
- Exports to 89 Countries
Experience supporting cold storage, industrial, and infrastructure developments globally.
Frequently asked Question
It is a sandwich wall panel with a non-combustible mineral wool core designed for fire-rated wall and partition systems.
Rockwool is non-combustible and resists high temperatures, helping limit fire spread through wall assemblies.
Yes, they are commonly used in fire compartmentation and fire-separation wall systems
Yes, they are suitable for both internal partitions and external wall applications when detailed correctly.
Yes, the fibrous mineral wool core offers effective sound absorption and noise reduction.
The rockwool core maintains stability and insulation performance at elevated temperatures.
Yes, they are widely used in factories, plants, utility buildings, and infrastructure projects
Yes, they provide thermal insulation along with fire and acoustic performance.
Yes, mineral wool insulation is free from CFC, HFC, and HCFC blowing agents.
Fire rating requirements, acoustic performance, wall height, and project regulations should be evaluated.
