Mount DF Screws for PUF Panels

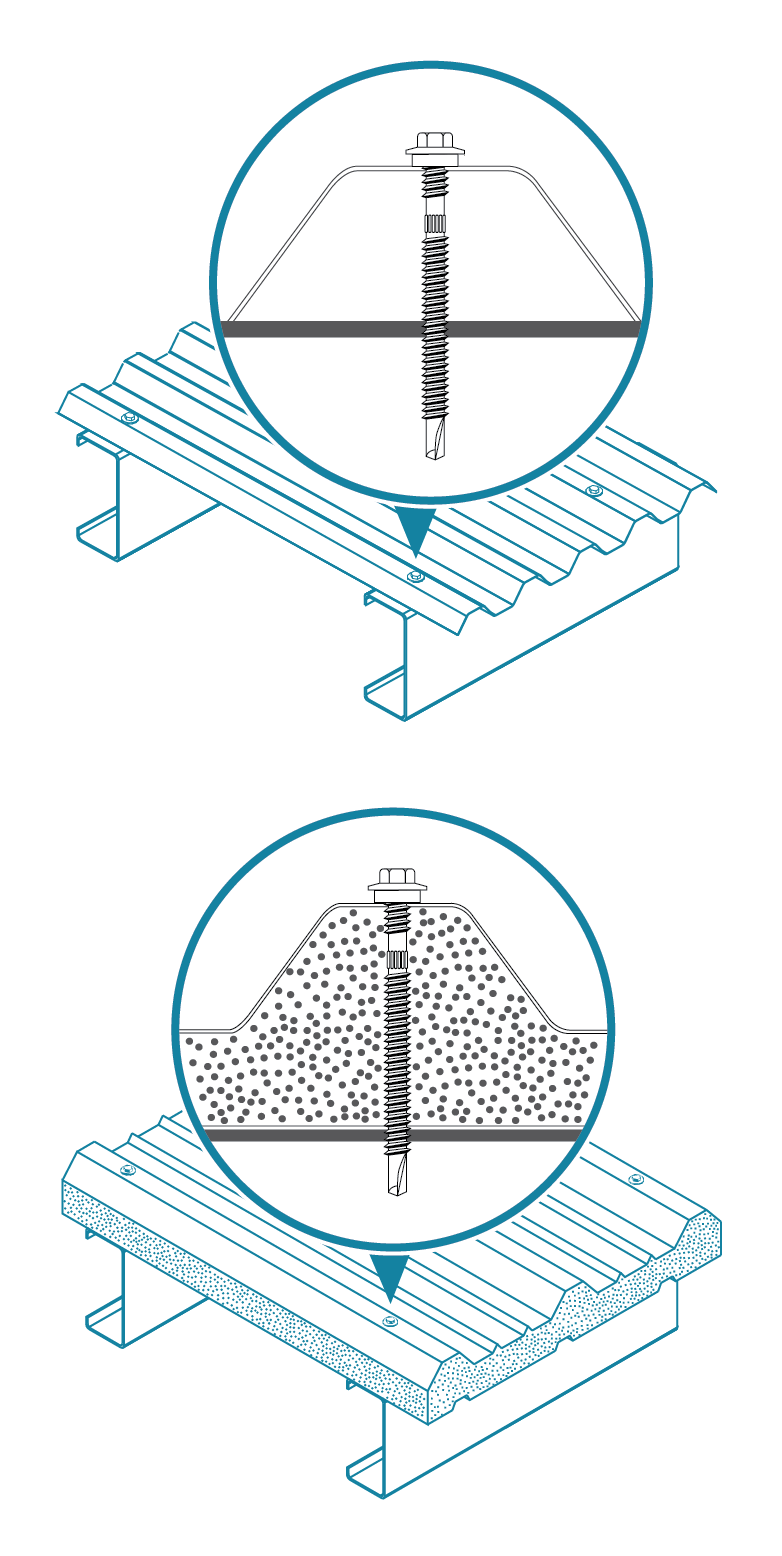

Mount DF Screws for PUF Panels are specialized self drilling fasteners manufactured from Carbon Steel C1022 and developed for insulated sandwich panel installations. Designed in extended length variants (90 mm to 200 mm), these screws allow secure fastening through insulation layers into structural members. Finished with zinc plating for corrosion resistance and requires a magnetic hex socket adapter for installation.
Product Specifications
| Parameter | Specification |
|---|---|
| Material | Carbon Steel C1022 |
| Head Type | Hex Head, Hex Flange Head |
| Available Lengths | 90 / 100 / 120 / 135 / 150 / 165 / 180 / 200 mm |
| Coating | Zinc Plated |
| Adapter Required | Magnetic Hex Socket |
Corrosion Classification
| Withstands 1000–1500 hrs Salt Spray Test (SST) |
|---|
| 15 Kesternich Cycles (SO₂ atmospheric simulation) |
| Polysol zinc flake coat |
| Acid-resistant top coat |
| Special zinc treatment |
| Carbon steel base |
Key Performance Attributes
Extended Length Range
Designed for thicker insulated panel applications.
Secure Panel Anchorage
Ensures firm fixing through insulation into structural members.
Corrosion-Protected Surface
Zinc-plated coating enhances durability.
Panel-Specific Design
Optimized for PUF sandwich panel fastening.
Applications
Cold Storage Facilities
Secures insulated sandwich panels to structural members for temperature-controlled enclosures.
Food Processing Plants
Anchors PUF/PIR wall and roof panels used in hygienic insulated areas.
Pharmaceutical Manufacturing Units
Fixes insulated panel systems within controlled production zones.
Dairy & Meat Processing Units
Ensures firm panel fastening in refrigerated and processing environments.
Logistics & Cold Chain Warehouses
Supports insulated envelope installation in temperature-sensitive facilities.
Modular Industrial Buildings
Enables fastening of factory-built insulated wall systems.
Healthcare & Medical Storage
Secures insulated panels used in temperature-controlled storage rooms.
Controlled Manufacturing Environments
Provides anchorage through insulation layers into steel substructures.
Frequently asked Question
They are available in extended lengths for fastening through insulated sandwich panels.
They are manufactured from Carbon Steel C1022.
90, 100, 120, 135, 150, 165, 180, and 200 mm.
Yes, they are zinc plated for corrosion resistance.
Hex Head and Hex Flange Head options are available.
Fastening PUF/PIR sandwich panels to structural members.
Yes, they are self drilling screws.
No, the drill tip allows direct penetration.
A magnetic hex socket adapter.
To allow fastening through the insulation core into the steel structure.
