Cold Room Wall & Ceiling Panels
Insulated panel systems designed for cold storage and temperature-controlled environments where thermal efficiency and enclosure integrity are critical. The panels are engineered to limit heat transfer, maintain consistent low temperatures, and support energy-efficient operation of refrigeration systems.
Product Specifications
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| Panel thickness available | 50mm, 60mm, 80mm, 100mm, 120 mm, 150 mm |
| Panel width available | 1000 mm, 1160 mm, 1150 mm, 1204 mm |
| Panel length available | 1000 -12000mm |
| Nominal Density | 40±2 Kg/m³ |
| Thermal conductivity@25°mean temperature | 0.023-0.03W/m²k |
| Thermal Transmittance ( U-Value) | 0.6-0.12kcal/m²∙h∙°C |
| Thermal Resistance (R-Value) | 1.4-8.3kcal/m²∙h∙°C |
| Compressive Strength@10% deformation | 0.11-0.21N/mm² |
| Tensile Strength | 1.1-2.5kg/cm² |
| HOT DIMENSIONAL STABILITY OF LENGTH, WIDTH, THICKNESS(max) @ 85±2°C/100±2°C FOR 24Hrs – MAX | ±2% |
| COLD DIMENSIONAL STABILITY @ – 25±2°C FOR 24 Hrs – MAX | ±2% |
| Type of foam | Polyurethene |
| Free from | CFC, HFC & HCFC free |
Key Performance Attributes
Outlining Essential performance parameters influencing insulation, strength, and installation efficiency.
High Thermal Insulation
Insulated panel construction limits heat transfer and supports stable low-temperature operation.
Airtight Panel Joints
Tight jointing systems reduce air infiltration, helping prevent temperature loss and condensation.
Moisture-Resistant Performance
Panel design supports operation in high-humidity, low-temperature environments typical of cold rooms.
Durable Cold-Environment Construction
Engineered to maintain structural integrity and insulation performance under continuous cold conditions.

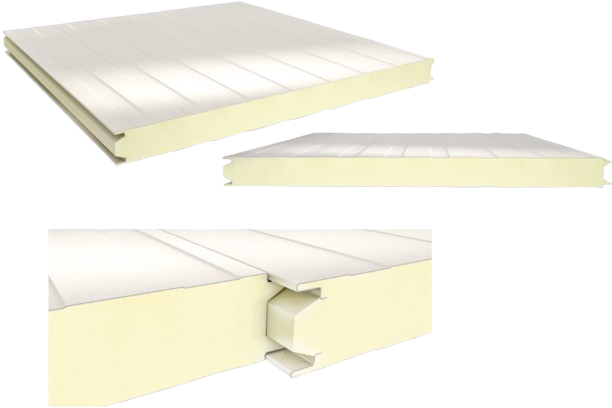

Available Panel Joints
Mount’s panel joint configurations ensure precise alignment, secure interlocking, and effective load transfer, enhancing structural continuity, air and moisture tightness, and installation efficiency while maintaining long-term durability .
Roof Joint
Single Tongue & Groove Joint
Double Tongue & Groove Joint
Hidden Tongue & Groove
Camlock Joint
M Section
Applications
Pharmaceutical & Vaccine Cold Storage
Precision-controlled environments for medicines, vaccines, and temperature-sensitive healthcare products.
Ice Cream & Frozen Foods Storage
Reliable freezing environments that preserve product quality and consistency.
Fruit & Vegetable Cold Storage
Controlled storage to extend shelf life and reduce post-harvest losses.
Cold Chain Logistics Facilities
Temperature-controlled warehouses and distribution hubs supporting cold chain continuity.
Agriculture & Horticulture Storage
Controlled environments for preserving seeds, planting material, and agricultural produce.
Poultry & Meat Processing
Temperature-controlled spaces supporting hygienic processing and cold storage of meat products.
Brewery and Beverage Storage
Provides the necessary environment for brewing and storing beverages.
Floral Storage
Keeps flowers fresh by maintaining controlled temperature and humidity levels.
Frequently asked Question
They are insulated sandwich panels used to construct temperature-controlled cold storage enclosures.
They reduce heat transfer through insulation and airtight joints, limiting thermal loss.
Yes, they are used in both chiller and freezer applications, subject to insulation thickness selection.
Airtight construction reduces temperature loss, condensation, and refrigeration load.
Yes, improved insulation efficiency lowers refrigeration system operating demand.
Yes, they are designed to perform in humid cold room environments when properly installed.
Yes, they are designed for wall, ceiling, and partition applications within cold rooms.
Yes, they are widely used in food processing, cold storage, and pharmaceutical facilities.
Thickness depends on operating temperature, room size, and thermal performance requirements.
Temperature range, insulation performance, airtightness, humidity conditions, and regulatory requirements.
